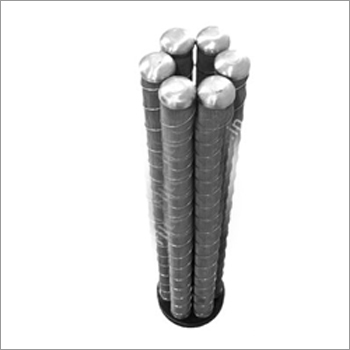

Metallic Fibre Felts

Metallic Fibre Felts
Metallic Fibre Felts
Product Code : 18
  • Minimum Order Quantity
Trade Information
  • Sample Available
  • Yes
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description
Making use of metal fiber in micrometer through laminate, lapping and high temperature sintering, Metallic Fiber Felt is designed and manufactured by us. Formed by layers of different pore size, this has pore diameter grads that can achieve larger dirt holding capacity and high filtering accuracy than single layer Felt. Having a high permeability, uniform pore size and mechanical intension, Metallic Fiber Felt is a renowned product in the marketplace. Apart from being resistant to high temperature and corrosion, it can be folded, reused and welded. In order to work at high temperature, high corrosion atmosphere and high differential pressure, the Metallic Felt is an ideal filter media suitable for highly efficient working.

Characteristics
  • High porosity
  • Long on-stream life-time, High capacity to hold dirt (for in-depth filtration), Low pressure drop (lower energy cost) + High flow rates: up to 20 times higher versus other media
Thin membrane
  • Superior backwash, leanable and back pulse capabilities, Easy to weld and pleat.
  • Available in stainless steel and other alloys
  • Resistant to heat and corrosion (dep. on alloy). Not brittle, Weldable, Chemical cleaning possible, no thermal shock and Low thermal expansion.

Specifications Of Metallic Fiber Felt

Type

Bubble Point Pressure (Bbp)

Filtration Based On Bpp

Porosity

Air Permeability

12300

3

70

10.00

7600

5

80

34.00

5045

7

47

62.00

10µ

3700

10

78

108.00

15µ

2470

15

80

180.00

20µ

1850

20

82

265.00

25µ

1480

25

79

325.00

30µ

1235

30

79

450.00

40µ

925

40

76

620.00

Comparisons Between Woven Wire Mesh & Metallic Fiber Felt

Characteristic

Non-Woven

Woven Mesh

Porosity

50-85%

<50%

Flow Rate

+ + + + +

---

Thickness

0.15 - 1. M.M.

0.1-0.5 Mm

Dirt Holding

+ + + + +

---

Pressure Drop

+ + + + +

---

Corrosion Resistance

Excellent

Good
