Home » Products » Stainless Steel Extruder Screens » Ribbon Filter Mesh

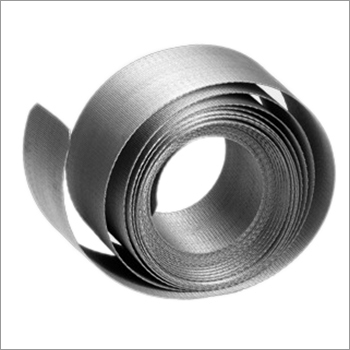

Ribbon Filter Mesh

Ribbon Filter Mesh
Ribbon Filter Mesh
Product Code : Filter Mesh
Brand Name : RAJ FILTERS
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Roll/Rolls
Product Specifications
  • Length
  • 157 mm x 10 mtrs Meter (m)
  • Surface Treatment
  • Mill Finish, Powder Coating
  • Product Type
  • Wire Cloth
  • Mesh Type
  • Steel Wire Mesh
  • Mesh Style
  • filter belt
  • Material
  • Steel
  • Color
  • gray
Product Description

We are the well-known company engaged in providing of an wide array of Ribbon Filter Mesh. Made using optimum quality raw material and advance technology, these are designed in stern adherence to the set industrial standards. The cartridge can be made by welding technology or by using epoxy joints, as per to the application requirements. To fulfill the clients' specific needs, we offer this Ribbon Filter Mesh. in both standard and custom made options.

Other Details:

Being one of the most prominent suppliers, we are also dealing in Filter Belts, which have superior execution and long lasting performance. These are ultrasonically cleaned and plain-woven by using advanced tensile wires that incorporate weaving pattern of inverse dutch twill. Made with the the modish technology and manufacturing methodologies our superior range of filter belts are also available in customized solutions. Offering the belts in various specifications and properties for their numerous industrial usages, we assure the easy and low cost maintenance of these filter belts.

Our comprehensive range of Wire Cloth Filter Belts (Screen Ribbons) for uninterrupted screen changers are widely utilized for performing the task of screening the external particles out of liquified plastic. These are accessible in spin lengths of 60 or 120 feet. The widths of the products are provided to befit any size of the extruder, as all are provided with fleecy (or feathered) sides. The Woven in Reverse Twilled Dutch Weave structure from the type of 304 has high tensile strength and is made with Stainless Steel. The following are the regulations of screen ribbon grades:

Auto Screener Belts

Mesh Count Wire Diameter Mesh Thickness
Warp Weft Warp Weft
48 10 0.500mm 0.500mm 1.70mm
72 15 0.500mm 0.500mm 1.80mm
132 14 0.355mm 0.450mm 1.40mm
132 18 0.355mm 0.450mm 1.40mm
152 24 0.315mm 0.355mm 1.04mm
228 36 0.190mm 0.280mm 0.85mm

 Particle size retention

Weave** Microns Inches Equivalent "Square Mesh" Value
48/10-P 400 .0160" 48
72/15-P 300 .0120" 62
72/15-Y 250 .0100" 70
250/40-P 90 .0035" 180
132/14-P 220 .0090" 78
132/14-Y 200 .0080" 85
132/18-P 175 .0070" 90
132/18-Y 160 .0065" 95
152/30-P 130 .0050" 120
152/30-Y 115 .0045" 135
250/40-Y 75 .0030" 200
338/37-Y 55 .0022" 280
400/120-Y 30 .0012" 500


Trade Information
  • Supply Ability
  • As per customer demand Per Week
  • Delivery Time
  • 10 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • As per customer recuirements
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
